Fundamentals

UNITRAIN / LABSOFT : COMPLETE LABS FOR FUNDAMENTALS

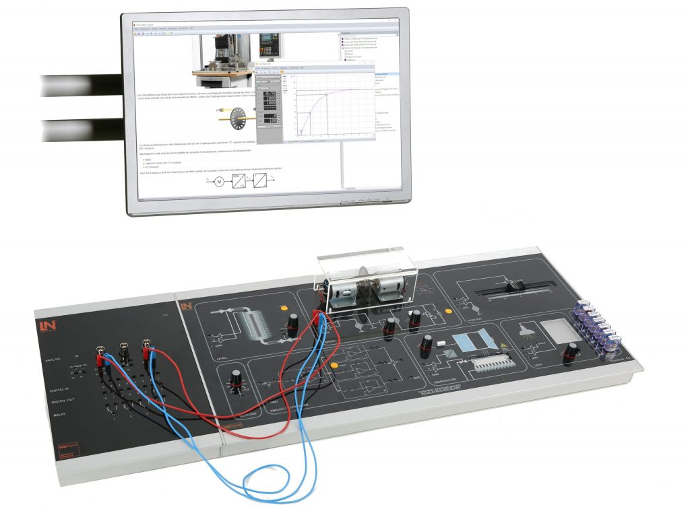

The UniTrain interface, a portable, PC-based measurement and control interface that provides the functionality of a complete electrical laboratory in just one device.

More than 120 instruments and sources are available for measuring, controlling, programming or analyzing. Each course comes with an extensive training curriculum including theories & principles, animations, practice laboratories and Q&A for a complete training solution.

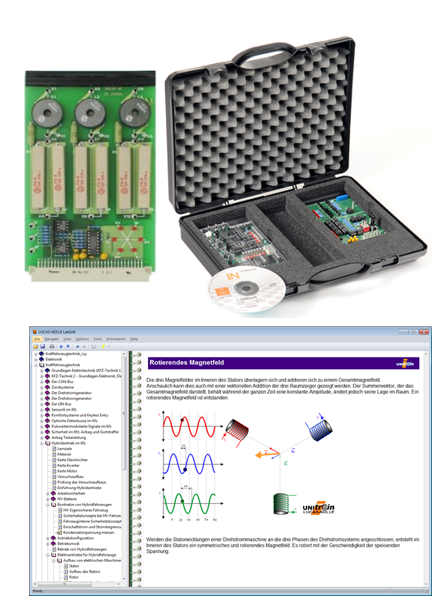

EACH COURSES INCLUDES CURRICULU

• The Lucas Nuelle Labsoft browser software is licence free and included with every hardware courses
• Each course (ie DC circuits, AC circuits ..) includes the theory with animations, graphics, texts, practical experiments with animated instructions, storing of results and solutions, tests and troubleshooting
• Multi-language platform supporting english & french courses
• Theory and practice are combined in one comprehensive turn-key solution​

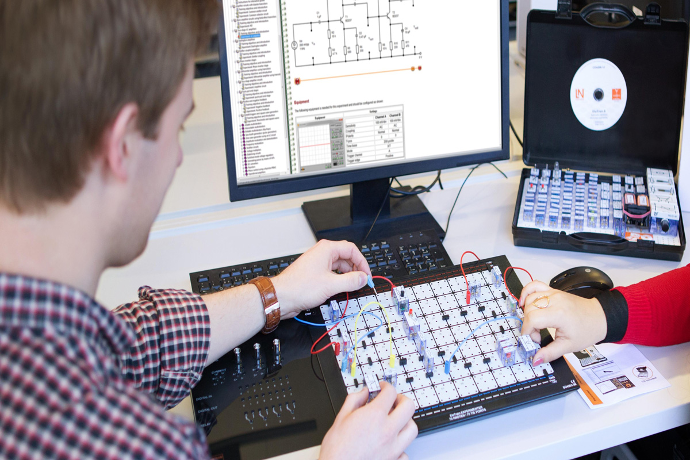

ELOTRAIN & UNITRAIN FOR HIGH SCHOOL TECHNOLOGY AND FUNDAMENTALS TOPICS

• Electronics
• Pre-engineering
• Automotive technology, ADAS and electric vehicles
• Computer technology
• Automation technology

​

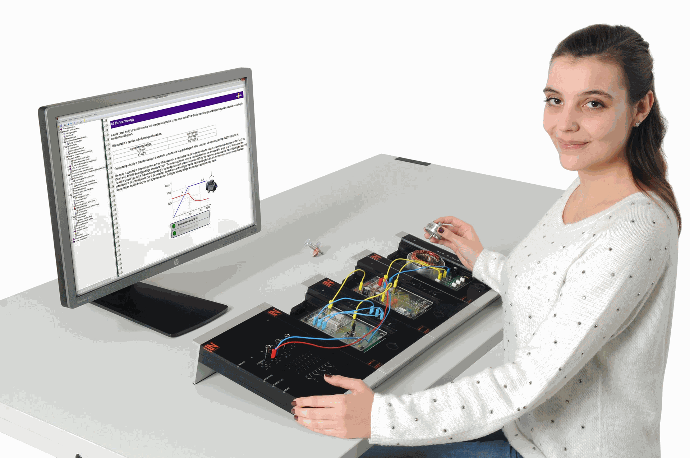

FOR COLLEGE AND UNIVERSITIES TECHNICAL TRAINING AND ENGINEERING

• Electrical engineering
• Digital electronics
• Electrical machines
• Power electronics
• Telecommunications
• Automation technology
• PLC
• Pneumatics and hydraulics
• Hybrid and electric vehicle
• Control technology
• Chemical engineering
• Power drive technology

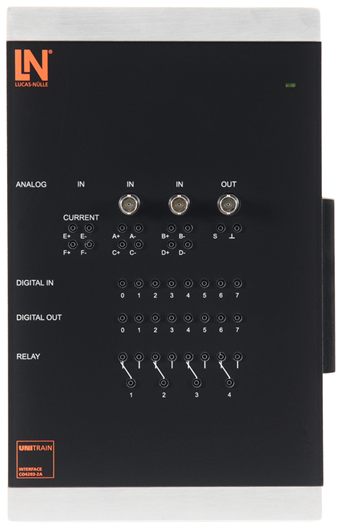

AT A GLANCE

• 4 analog differential amplifier inputs with 10MHZ bandwith, 100ms sample, 2 BNC & 2mm jacks
• 2 analog inputs for current measurement, 12bit, up to 5A on 2mm jacks
• 16-bit digital signal inputs, 0-100Khz
• Adjustable analog output, +/- 10 V, 0.2 A, DC – 5 MHz
• Analog fixed voltage output 5 V, 1 A
• 2 analog fixed voltage outputs +/- 15 V, 1 A
• 3 adjustable analog outputs +/- 20 V, 1 A, DC-150 Hz
• 8 relays 24 V DC / 1 A
• 16-bit digital signal outputs

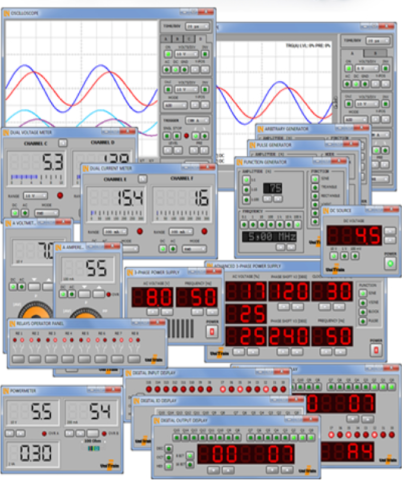

VIRTUAL INSTRUMENTS

• 2 x VI Voltmeter, 2 x VI Ammeters: AC, DC, 9 Ranges 100m V to 50V, TrueRMS, AV
• 1 x VI power meter, 9 ranges 100 mV to 50 V
• 1 x VI 2-channel ammeter: AC, DC, 2 ranges 300 mA and 3 A, TrueRMS, AV
• 1 x VI 2-channel voltmeter: AC, DC, 9 ranges 100 mV to 50 V, TrueRMS, AV
• 1 x VI 2-/4-channel oscilloscope: bandwidth 10 MHz, 25 time ranges 100 ns/div to 10 s/div, 9 voltage ranges 20 mV/div to 10 V/div, trigger and pretrigger, XY and Xt mode, cursor function, addition and multiplication function for 2 channels
• 1 x VI Spectrum Analyzer: 9 voltage ranges 100 mV to 50 V, input frequency range 3 Hz to 1 MHz, time domain display
• 1 x VI Bode plotter: 9 voltage ranges 100 mV to 50 V, frequency range 1 Hz - 5 MHz, time domain display and spatial curve diagram
• 1 x VI adjustable DC voltage 0 - 10 V
• 1 x VI function generator: 0.5 Hz - 5 MHz, 0 - 10 V, sine, square, triangle,
• 1 x VI Arbitrary Generator, 1 x VI Pulse Generator
• 1 x VI 16 x Digital Out, 1 x VI 16 x Digital IN, 1 x VI 16 x Digital IN / OUT: Display Binary, Hex, Decimal and Octal Number Display
• 1 x VI three-phase power supply unit 0 - 150 Hz, 0 - 14 Vrms, 2 A
• 1 x VI Adjustable DC Power Supply 3 x (-20V - +20V), 2A
• 1 x VI three-phase power supply unit with additional adjustable phase shift and cycle rate
• 1 x VI 8 x Relay, 1 x VI Multimeter:

​
